Outside Edge Profiles -

Regular
K-1171 - Rows/Levite
K-1192
Square
1/8" Round Over
1/4" Round Over
3/8" Round Over
Kingwood

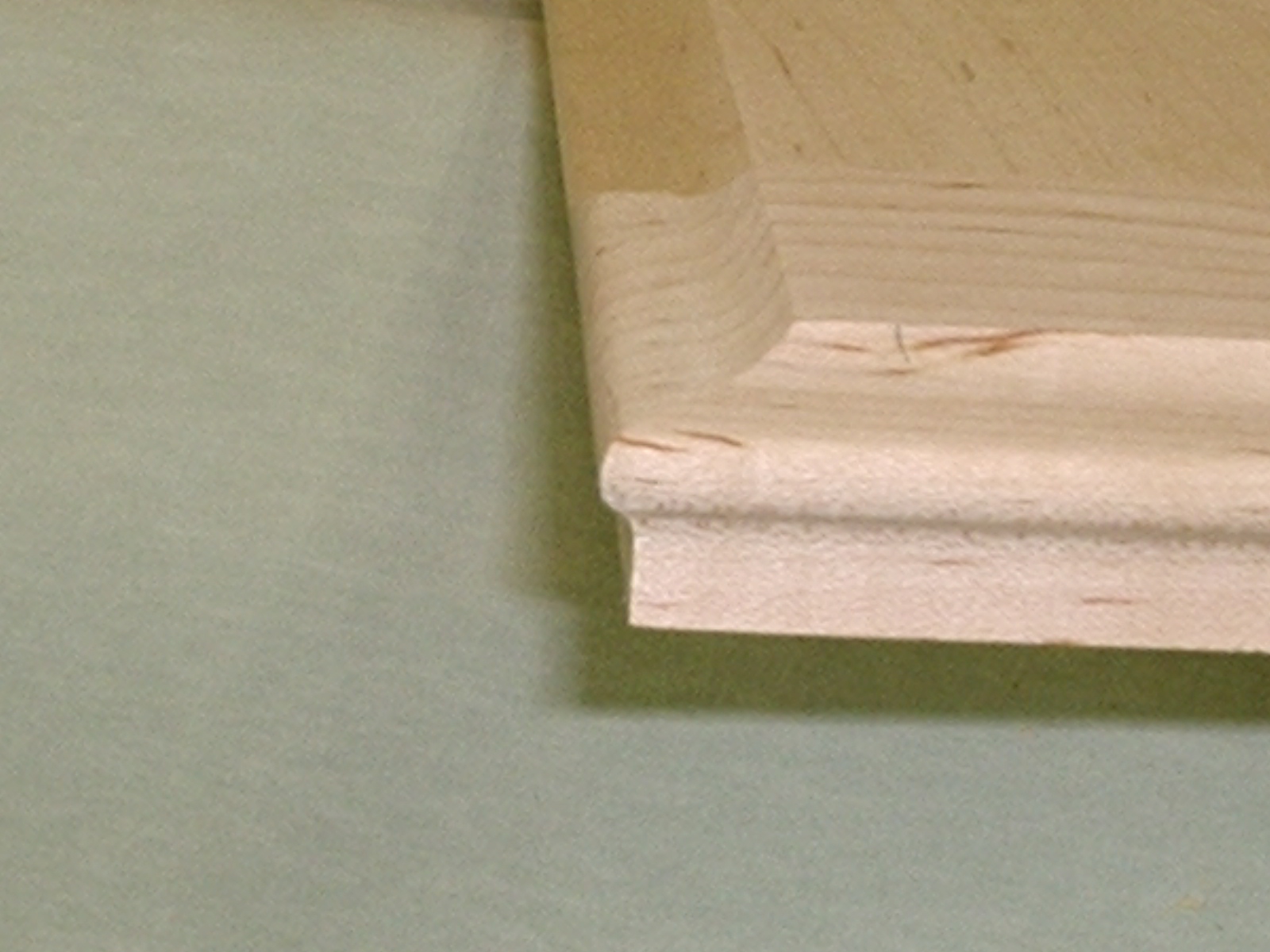

Hand Hold
Alan's
K-1105
K-1111

Hinges and Plates

Lama 125° Hinge

Standard hinge used by Cabinet Doors by RTC is the Lama 125° with dowels. Used with a 6 mm Lama plate for half inch overlay.

Other specialty hinges available.
· Lazy Susan (170° hinge)
· Bi-fold (60° hinge)
· Compact Hinges
· Self-close/Soft-close Hinges

                                                  Contact us for any hinges not listed above.

Plates

Plates also available are the 3 mm and 0 mm. Theses additional plates give us the ability to change the overlay to 5/8" or 3/4."

 If you need an overlay greater than 3/4" give us a call and we will see what hinges best work for your type of setup.
